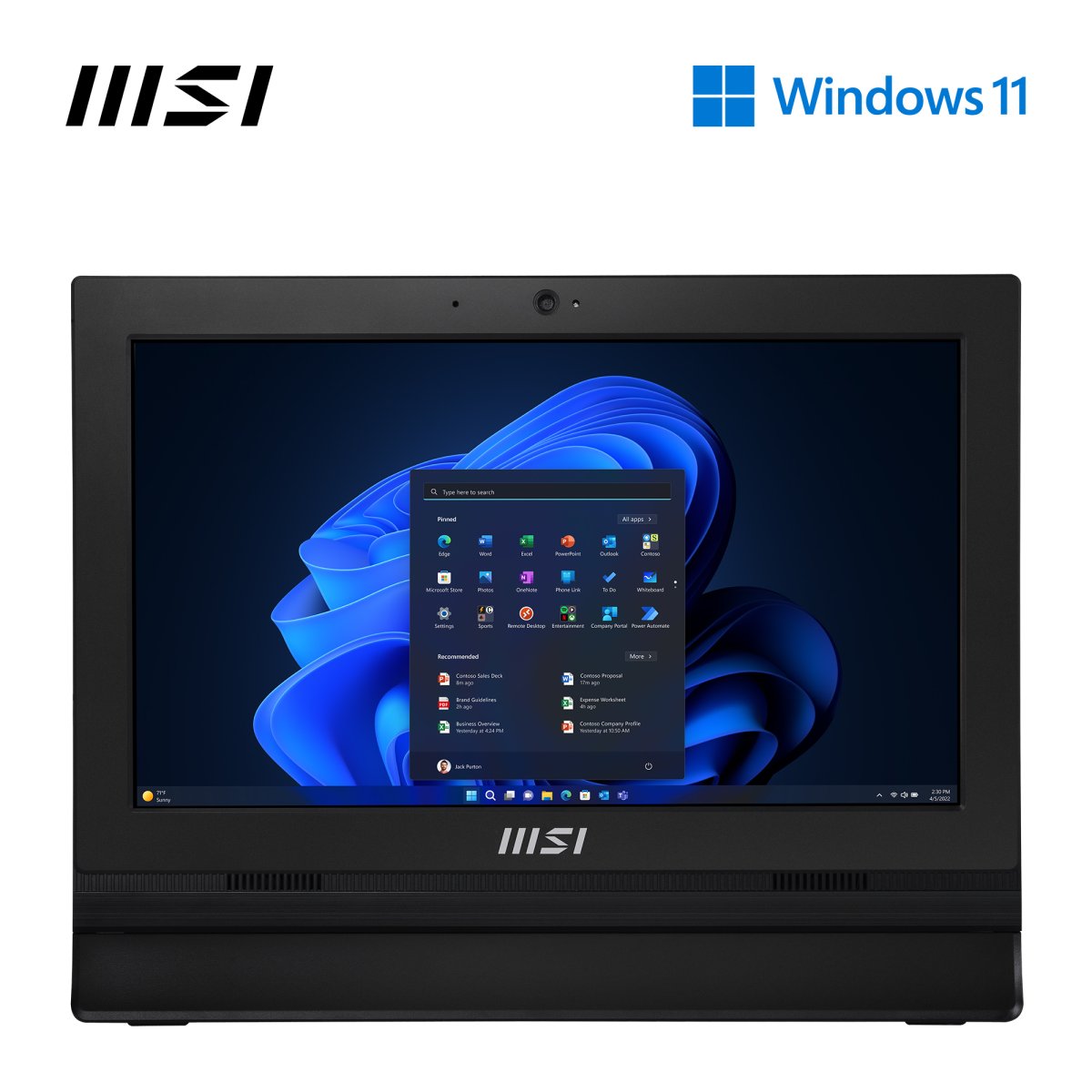

PRO AP162T ADL Series: All-in-One Monitor PC
Combining IPS-grade screen display and robust hardware, the PRO AP162T ADL is a complete desktop system – with a broad range of connectivity options and webcam suitable for POS Terminals.

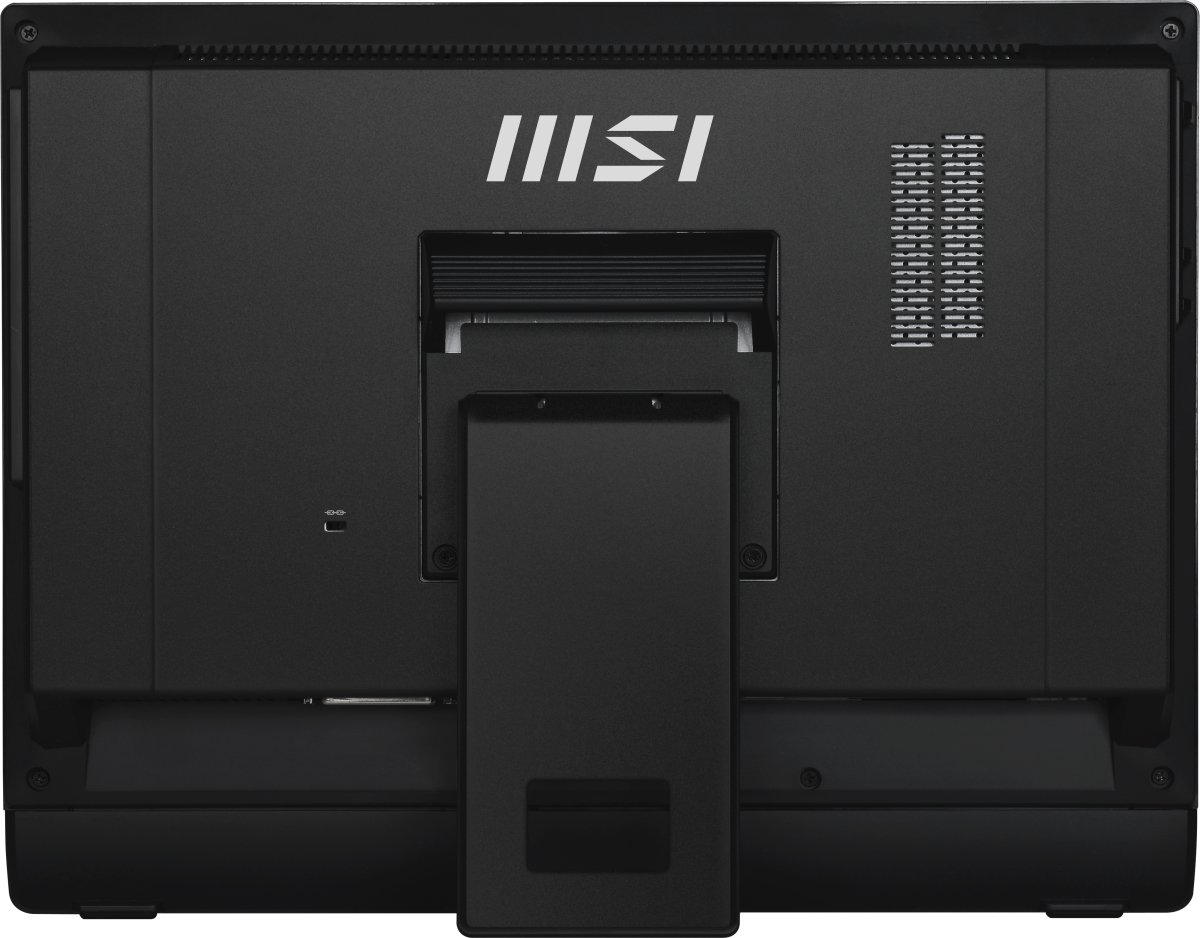

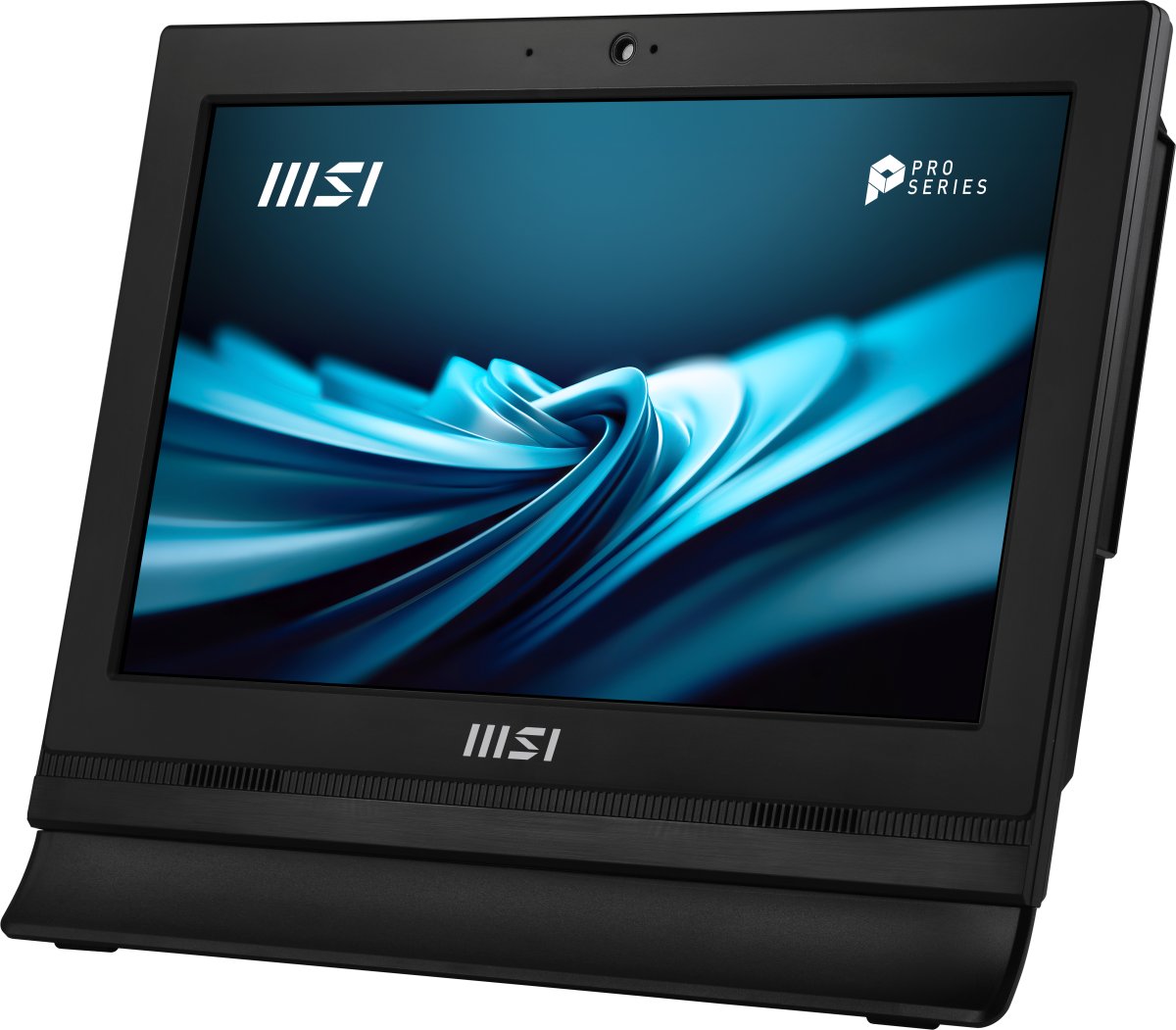

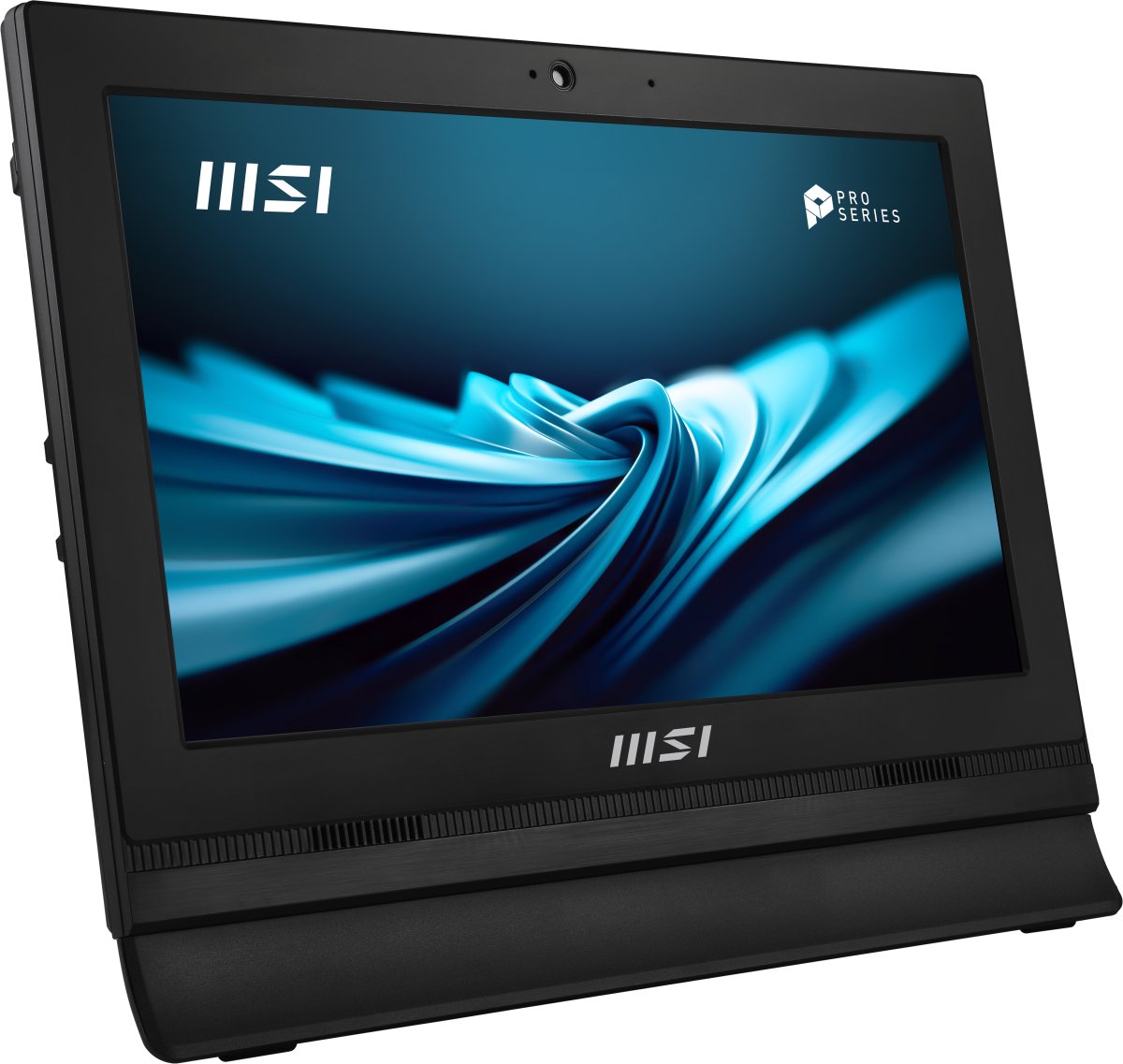

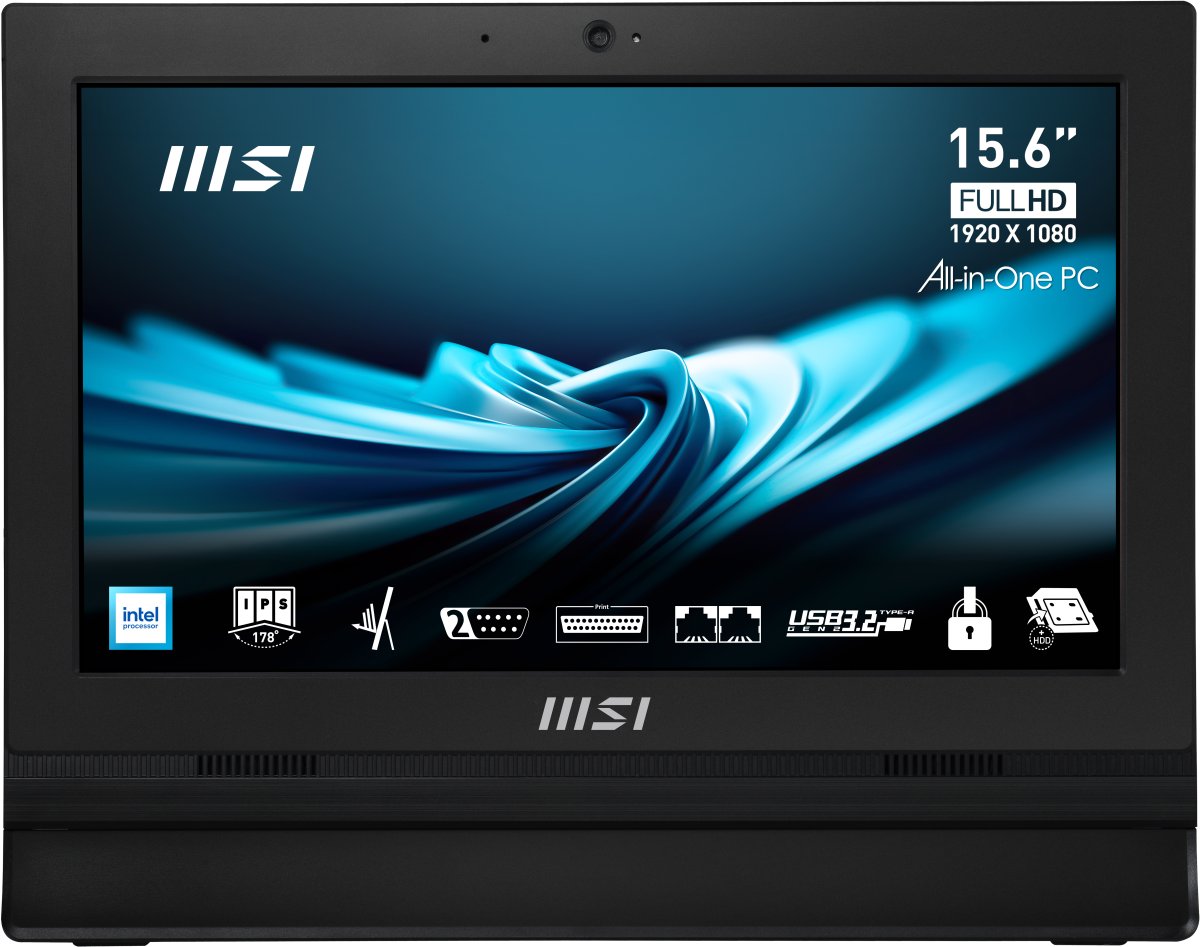

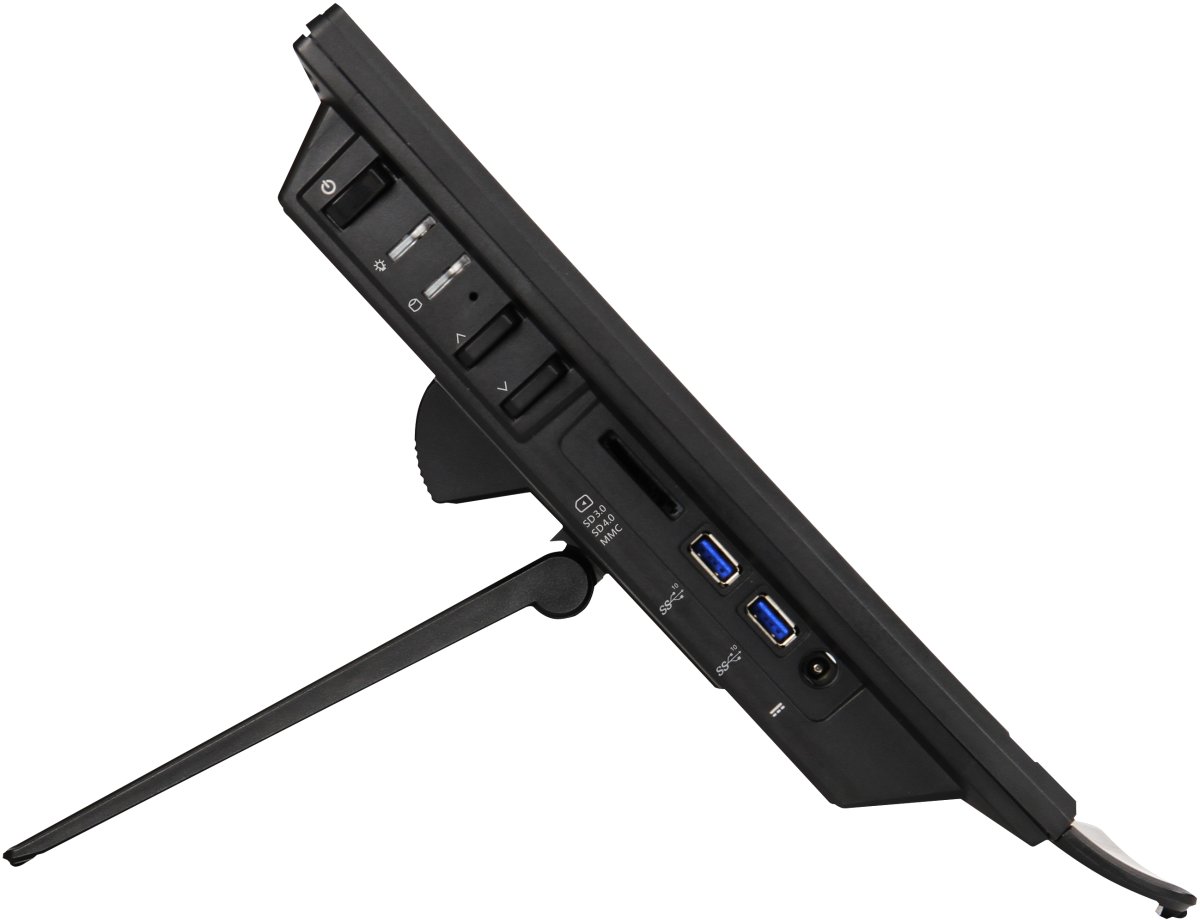

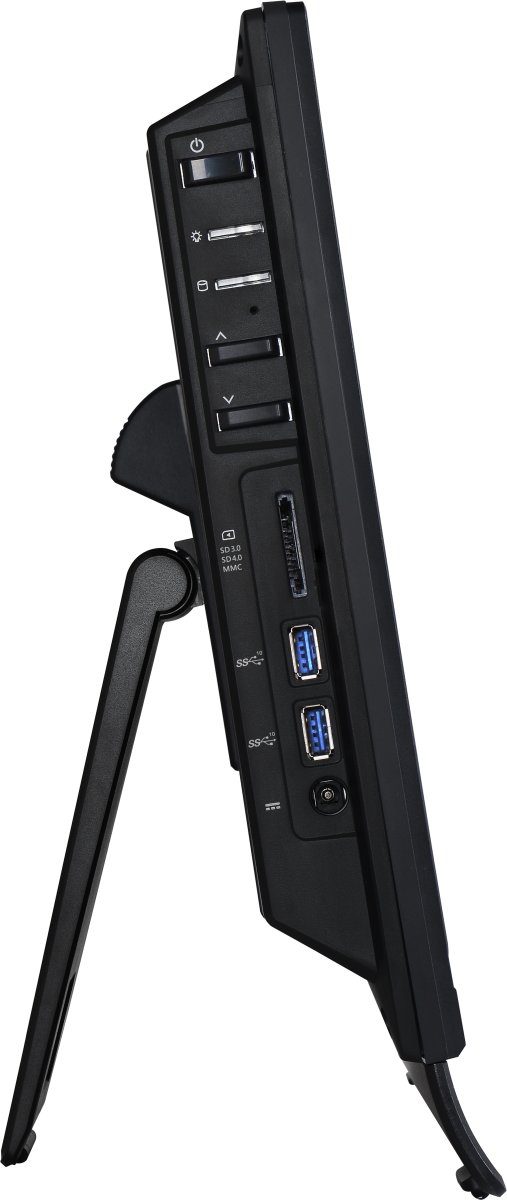

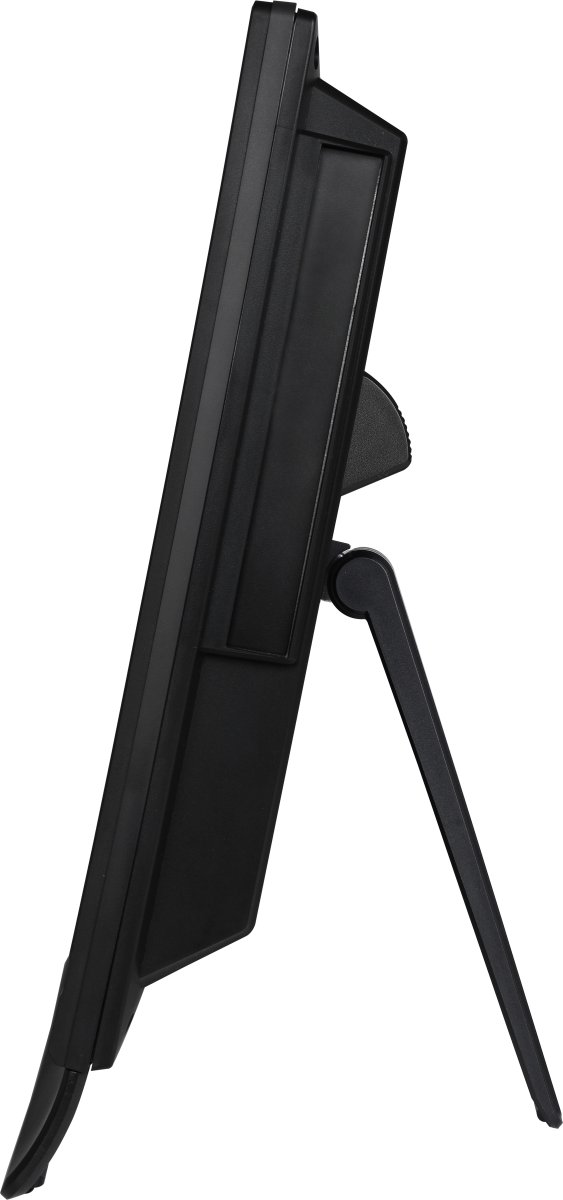

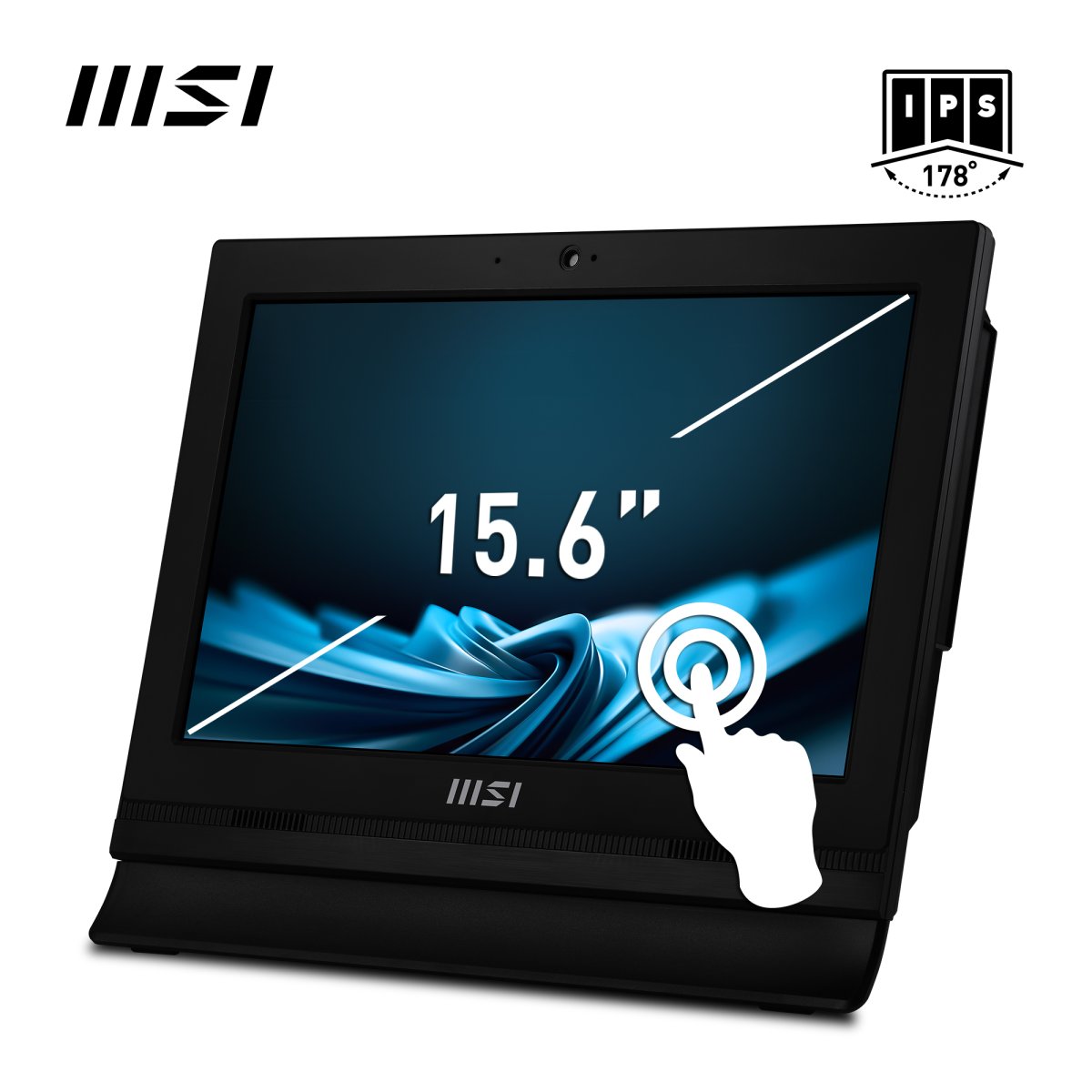

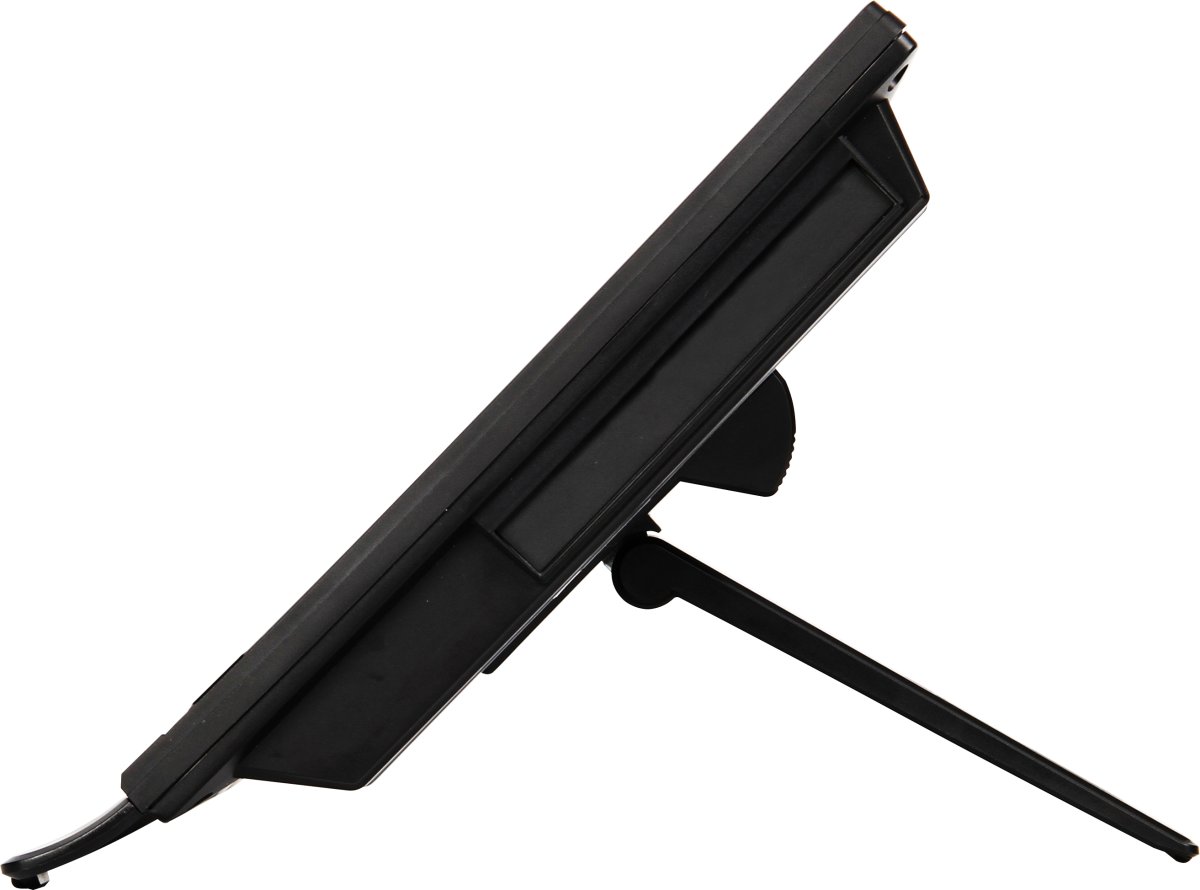

Designed for office professionals and POS terminals who spend long hours in front of computer screens, the 15.6” FHD screen (1920×1080 IPS-grade panel) features anti-glare screen to help minimize eye fatigue. The monitor includes built-in speakers and a fold-out stand.
The PRO AP162T ADL N100 4GB 128GB W11P is equipped with an Intel N100 processor, 4GB of DDR4 RAM memory, and 128GB of Gen3 SSD storage. The system includes Windows 11 Pro operating system.
MIL-STD-1916 testing guarantees MSI products meet high-performance standards, providing reliable and professional experiences with desktop PCs at their best.
MIL-STD-1916 testing ensures MSI products meet high performance standards, providing a reliable gaming experience with desktops at their best.
MIL-STD-1916 testing ensures every component meets strict durability standards, making MSI products capable of lasting through extended gaming and work sessions while delivering reliable performance.
We employ automation and advanced technology to achieve the highest level of precision. This technology-driven approach allows us to create and test products with unparalleled accuracy.
In the world of business, reliability and dependability are crucial. MSI products go through rigorous testing and quality checks to minimize the chances of failure, ensuring an uninterrupted workflow.
| Display diagonal | 39.6 cm (15.6") |
|---|
| Display resolution | 1920 x 1080 pixels |
|---|
| Touchscreen | Yes |
|---|
| HD type | Full HD |
|---|
| Display brightness | 250 cd/m² |
|---|
| Panel type | IPS |
|---|
| Pixel pitch | 0.17925 x 0.17925 mm |
|---|
| Anti-glare screen | Yes |
|---|
| Processor family | Intel® N |
|---|
| Processor manufacturer | Intel |
|---|
| Processor model | N100 |
|---|
| Processor frequency | 3.4 GHz |
|---|
| Processor generation | Intel N-series |
|---|
| Processor cores | 4 |
|---|
| Processor threads | 4 |
|---|
| Processor boost frequency | 3.4 GHz |
|---|
| Performance cores | 4 |
|---|
| Processor cache | 6 MB |
|---|
| Processor cache type | Smart Cache |
|---|
| Processor base power | 6 W |
|---|
| Internal memory | 4 GB |
|---|
| Maximum internal memory | 16 GB |
|---|
| Memory slots | 1 |
|---|
| Memory slots type | SO-DIMM |
|---|
| Memory clock speed | 3200 MHz |
|---|
| Memory layout (slots x size) | 1 x 4 GB |
|---|
| Memory form factor | DIMM/SO-DIMM |
|---|
| Total storage capacity | 128 GB |
|---|
| Storage media | SSD |
|---|
| Optical drive type | No |
|---|
| Number of SSDs installed | 1 |
|---|
| SSD capacity | 128 GB |
|---|
| SSD interface | PCI Express 3.0 |
|---|
| SSD form factor | M.2 |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | MMC, SD |
|---|
| Discrete graphics card | No |
|---|
| Discrete graphics card model | Not available |
|---|
| On-board graphics card | Yes |
|---|
| On-board graphics card model | Intel® UHD Graphics |
|---|
| On-board GPU manufacturer | Intel |
|---|
| Built-in speaker(s) | Yes |
|---|
| Number of speakers | 2 |
|---|
| RMS rated power | 2.5 W |
|---|
| Built-in microphone | Yes |
|---|
| Audio chip | Realtek ALC256 |
|---|
| Built-in camera | Yes |
|---|
| Total megapixels | 1 MP |
|---|
| Wi-Fi | Yes |
|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|
| Ethernet LAN | Yes |
|---|
| Bluetooth | Yes |
|---|
| WLAN controller manufacturer | Intel |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
| Bluetooth version | 5.1 |
|---|

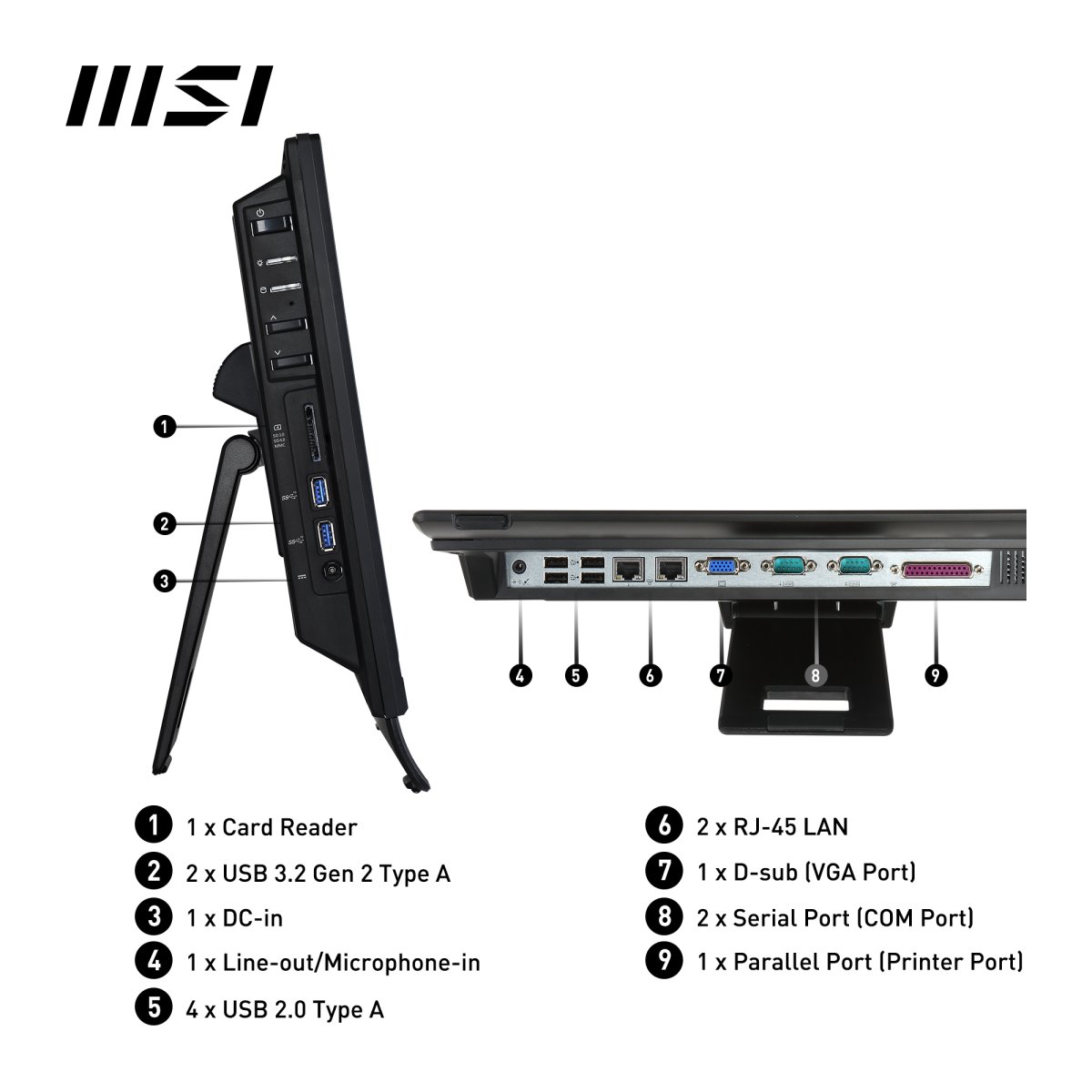

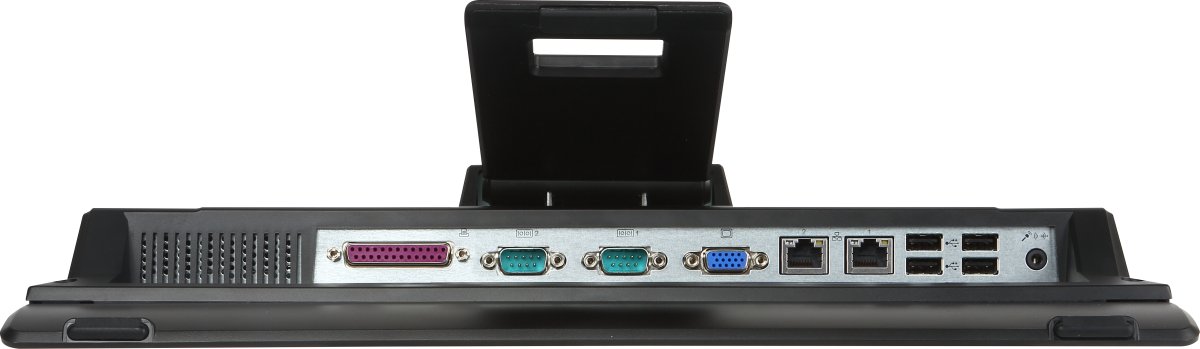

| USB 2.0 ports quantity | 4 |
|---|
| Ethernet LAN (RJ-45) ports | 2 |
|---|
| Intel Thunderbolt 4 | No |
|---|
| VGA (D-Sub) ports quantity | 1 |
|---|
| Microphone in | No |
|---|
| Combo headphone/mic port | Yes |
|---|
| Audio output | No |
|---|
| DC-in jack | Yes |
|---|
| Number of side USB ports | 2 |
|---|
| Number of bottom USB ports | 4 |
|---|
| Number of rear audio ports | 1 |
|---|
| USB Sleep-and-Charge | No |
|---|
| PowerShare | No |
|---|
| Product colour | Black |
|---|
| Housing material | Plastic |
|---|
| Colour name | Black |
|---|
| Frameless design | No |
|---|
| Height adjustment | Yes |
|---|
| Pivot | Yes |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| Wall mountable | Yes |
|---|
| VESA mounting | Yes |
|---|
| Panel mounting interface | 75 x 75 mm |
|---|
| Introduction year | 2024 |
|---|
| On/off button | Yes |
|---|
| Country of origin | China |
|---|
| Product type | All-in-One PC |
|---|
| Market positioning | Business |
|---|

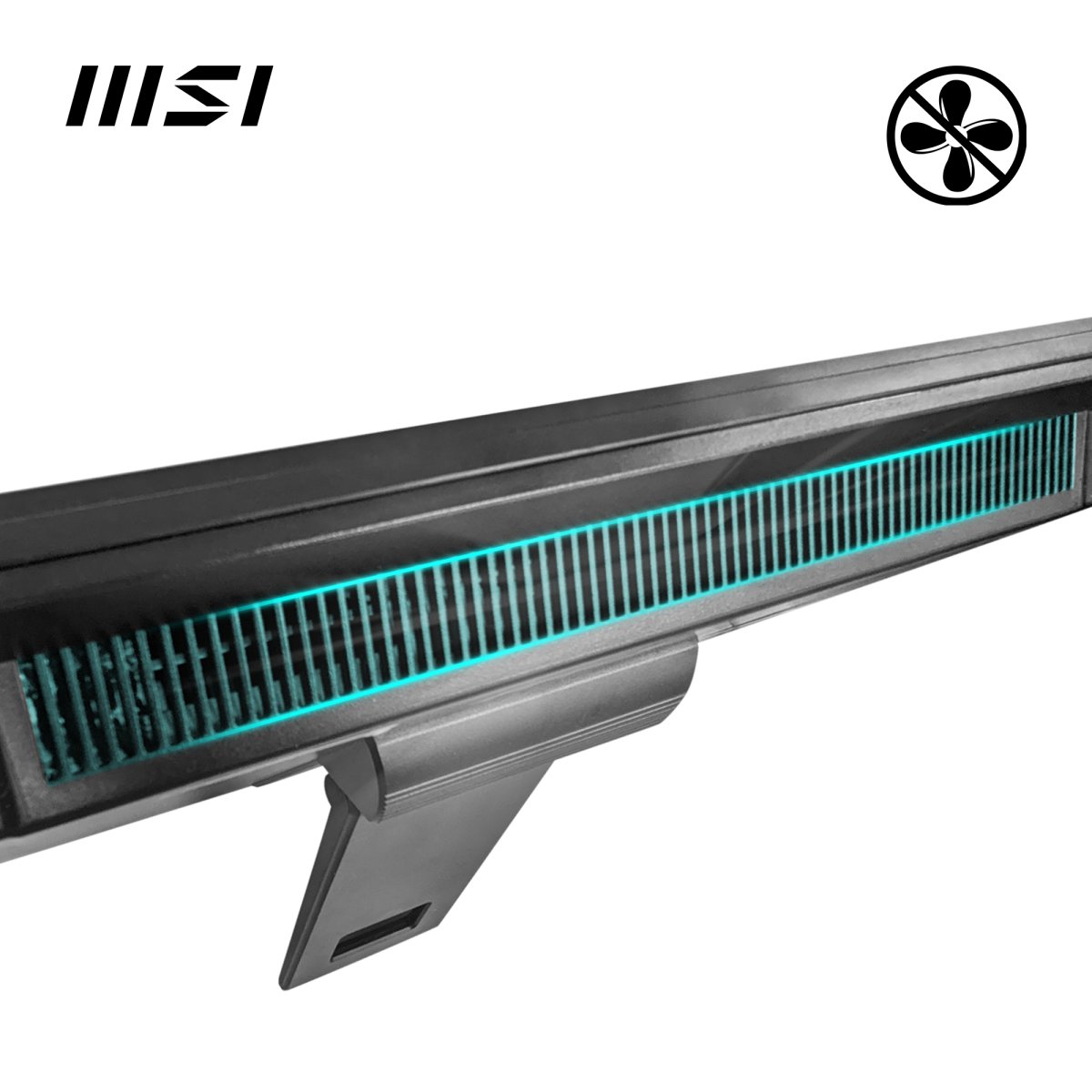

| Cooling type | Passive |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|
| Operating system installed | Windows 11 Pro |
|---|
| AC adapter power | 65 W |
|---|
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RCM, UKCA, UL, VCCI, cUL |
|---|
| Mouse included | No |
|---|
| Keyboard included | No |
|---|
| Warranty period | 36 year(s) |
|---|
